    220V 50HZ Cold Rolled Cleanroom Pass Box Stainless Steel Static Pass Box

    Ask Lasest Price
    Brand Name : Fairtech
    Model Number : FT009
    Certification : CE,Rosh
    Price : USD300-500/PC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000000pcs per Week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

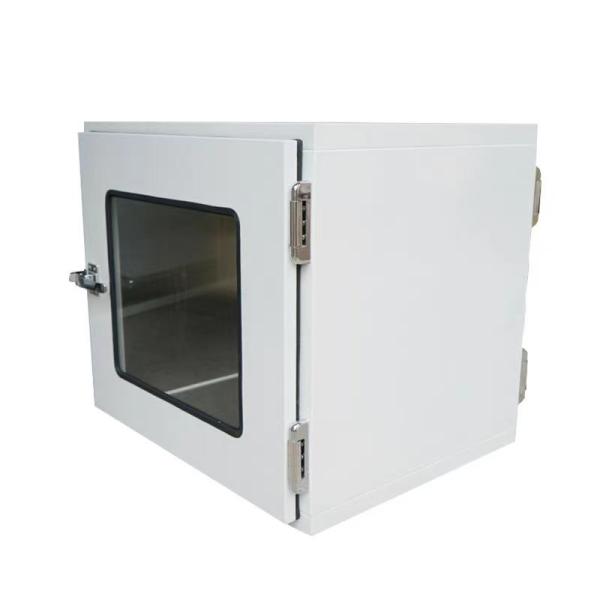

    220V 50HZ Cold Rolled Cleanroom Pass Box Stainless Steel Static Pass Box

    Stainless Steel Pass Box Static Type Clean Room Pass Through Box

    Pass Box Description:

    Pass box is an auxiliary device for the clean room, which is mainly used to pass small items among clean areas and between clean area and non-clean area. In this way, clean room door opening times can be reduced, which can it can minimum the door opening times of the clean room, which can minimize the pollution level in the clean room.

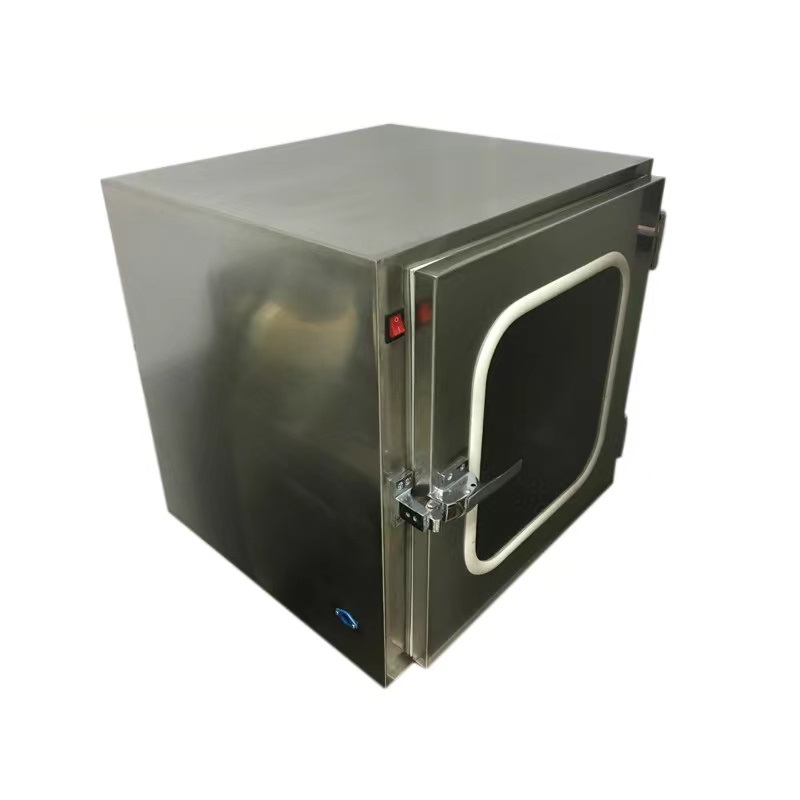

    Pass box is made of stainless steel plate which is neat and clean. The two doors are interlocked to prevent cross-contamination effectively. It is equipped with electronic or equipment interlock unit and ultraviolet germicidal lamp.


    Pass box Feature:

    · Sealed using a magnetic seal, excellent sealing performance and beautiful appearance.

    · Both windows are electronically interlocked or mechanically interlocked so that they cannot be opened simultaneously. This design ensures that contaminated air will not enter the clean room.

    · The game and workbench are stainless steel, smooth, wear-resistant and corrosion resistant.

    · After the sash is closed, the pass box will automatically start the air shower.

    · UV germicidal lamps with 28 UW/m2 irradiances per meter are optional based on customer requirements. After the installation of the UV lamps, the pass box not only has a filtration function, but also effectively kills bacteria.

    Pass Box Spefication:
    ModelMechanical interlockElectronic interlocking
    Externial size (mm)W760*D660*H660W760*D670*H660
    Internial size (mm)W600*D600*H600W600*D600*H660
    Supply voltage-------220V 50HZ
    Box material(external)Cold-rolled steel
    Box material(within)Stainless steel
    Appearance colorWhite
    Box surfaceSpraying plastics


    FAQ:

    Q1:What is the MOQ?

    A1:The MOQ is 1 PC

    Q2: Can you produce non-standard size ?
    A2: Yes, custom size is available

    Q3: Can you send samples?
    A3: Yes, we can send you sample for evaluating, free or not depending on products.

    Q4: What' s the payment terms that you can accept?
    A4: T/T, L/C, D/P.

    Q5: How about the shipment?
    A5: By sea, by air or by railway, according to your demand.

    Q6: Are you a factory or a trading company?
    A6: We are a GMP factory, setting design, manufacturing &sale in one, you can get best factory quote from us.
