FT-001 ESD Table Mat Antistatic Blanket Rubber For BGA Repair Work

Anti-Static Mat Blanket ESD Mat Antistatic Blanket ESD Table Mat For BGA Repair Work

ESD Anti Static Mat Description :

ESD Table Mat made of anti-static(conductive) and static-dissipative materials as well as synthetic rubber. The surface layer is a 0.5mm thick static-dissipative layer. The bottom layer is a 1.5mm conductive layer. Generally, 2mm thick double-layer structure is used.

ESD Anti Static Mat Features :

1) 2mm thick double-layer matting

2) Surface layer is a 0.5mm thick static-dissipative layer

3) Bottom layer is a 1.5mm thick conductive layer

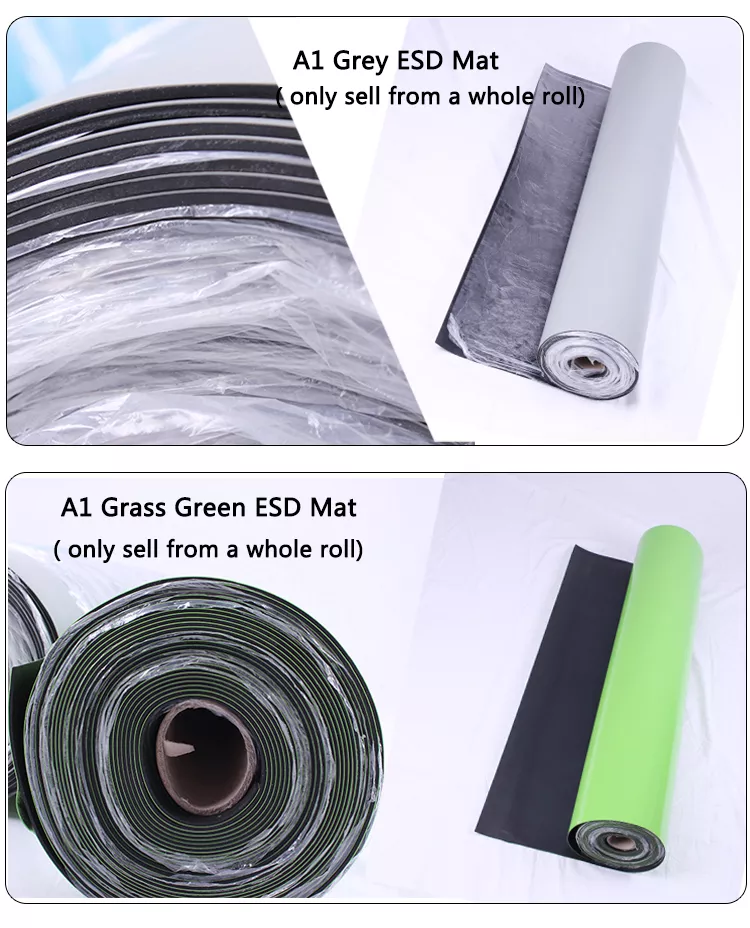

4) Smooth finish Available in grey, green, or blue

5) Surface Resistance: 1×106 < R < 1×109 T

6) emperature Resistance: 180o (Instantaneous Temp)

7) Easy to clean

8) Excellent layflat properties

9) Available with or without 10mm press studs in each corner

ESD Anti Static Mat Application:

Designed as bench matting Also suitable for flooring For use in EPAs in workshops or laboratories

ESD Anti Static Mat Spefication:

Product Name:	ESD Rubber Mat
Model Number:	SC-Green-2mm
Material:	Rubber
Surface Resistance:	Top dissipative layer: 10E3-10E5 ohms
Surface Resistance:	Bottom conductive layer: 10E6-10E9 ohms
Thickness: 2mm	Top dissipative layer: 0.5mm
	Bottom conductive layer: 1.5mm
	1.6mm-5mm thickness are avialable
Width:	0.3m-1.5m
Length:	10m, 15m, 20m, 25m, 30m per roll

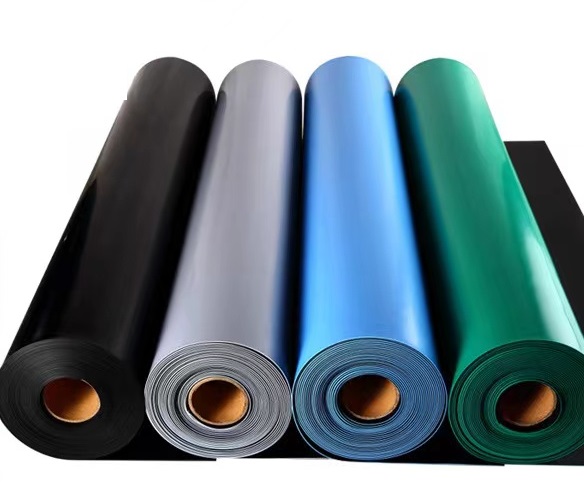

Color:	Light Green, Green, Dark Green
	Light Blue, Blue, Dark Blue
	Gray, Brown, Black, Yellow
	any color as required
Decay Time:	<0.1 second
Abrasive Loss:	<0.02
Gross Weight:	about 3kg/square meter
Gross Weight:	30kg/roll for size:T2mmxW1.0mxL10m
Certificate:	SGS, RoHS

FAQ:

Q: Are you a factory or trading company?

A: We are manufacturer,our own factory in Hebei .

Q: How long is your delivery time?

A: Generally it is 5-10 days. If the goods are in stock; or it is 10-20 days, If the goods are not in stock.it is according to quantity.

Q: Do you provide sample? Is it free or extra?

A: Yes, we could offer the sample for free charge, but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment less than USD1000, 100% in advance. Payment more than USD1000, 30% T/T in advance, balance before shipment.
