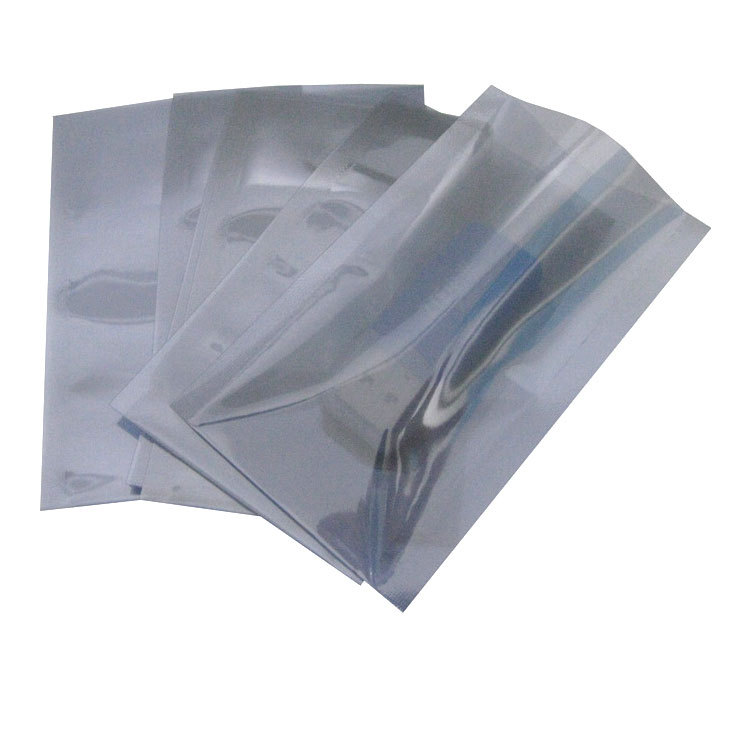

Anti Static Packaging Bag Description:It is suitable for packing of PCB, IC and other static sensitive
components.
The kind of bag can keep static-sensitive components away from the
potential static danger to the largest extent.
Its special four -layer structure can create such effect as an
inductive cover to separate the goods inside from the static field.
The inner layer is made from ethane which can remove the static and
avoid static generation inside the bag.
This kind of hot seal bag is transparent, so the goods inside can
be easily recognized from outside. The surface resistance:
10e8~10e11Ω
And physical property meet the ASTMD257, ELA541 and MIL-B-81705
international standards
Anti Static Packaging Bag Features:- Layers: anti-static coating, anti-static polyester, Pure
Metal(alminum foil), Intensified nylon, Anti-static polystyrene(
five layers)
- usage: Keep sensitive electronic devices away from potential static
damage. PCB packing, electronics packing.
- Surface resistance:108-1010 ohm.
- Shape: Flat, stand, gusset, coffee bag.
- Opening: Open, with zip lock.
- Printing: any color and patten as custom like.
Anti Static Packaging Bag Notice:
1) Standard thickness 0.074mm
2) Open top
3) Open from the small side
4) Two or three sides 5mm seal
5) Zipper from the open top 15mm Anti-Static Shielding Bags ESD Anti Static Package Bag Zip Lock
Ziplock Waterproof Self Seal Antistatic Storage Pack Bag 100pcs
Outside Dimension: 6x9cm (2.4"*3.5"), Inside Dimension: 5x7.5cm
(2.0"*3.0")
Outside Dimension: 7x11cm (2.8"*4.4"), Inside Dimension: 6x9cm
(2.4"*3.5")
Outside Dimension: 7x14cm (2.8"*5.5"), Inside Dimension: 6x12cm
(2.4"*4.7")
Outside Dimension: 6.5x12cm (2.5"*4.7"), Inside Dimension: 5.5x10cm
(2.2"*3.9")
Outside Dimension: 8x12cm (3.1"*4.7"), Inside Dimension: 7x10cm
(2.8"*4.0")
Outside Dimension: 8x15cm (3.1"*5.9"), Inside Dimension: 7x13cm
(2.8"*5.1")
Outside Dimension: 9x13cm (3.5"*5.1"), Inside Dimension: 8x11cm
(3.1"*4.4")
Outside Dimension: 10x15cm (3.9"*5.9"), Inside Dimension:9x13cm
(3.5"*5.1")
Outside Dimension: 11x17cm (4.3"*6.7"), Inside Dimension: 10x15cm
(3.9"*5.9")
Outside Dimension: 12x18cm (4.7"*7.1"), Inside Dimension: 11x16cm
(4.3"*6.3")
Outside Dimension: 13x18cm (5.1"*7.1"), Inside Dimension: 12x17cm
(4.7"*6.3")
Outside Dimension: 15x20cm (5.9"*7.8"), Inside Dimension: 14x18cm
(5.5*7.3")
Outside Dimension: 16x20cm (6.3"*7.8"), Inside Dimension: 15x18cm
(5.9*7.3")
Outside Dimension: 17.5x23cm (6.9"*9.1"), Inside Dimension:
16.5x21cm (6.5"*8.3")
