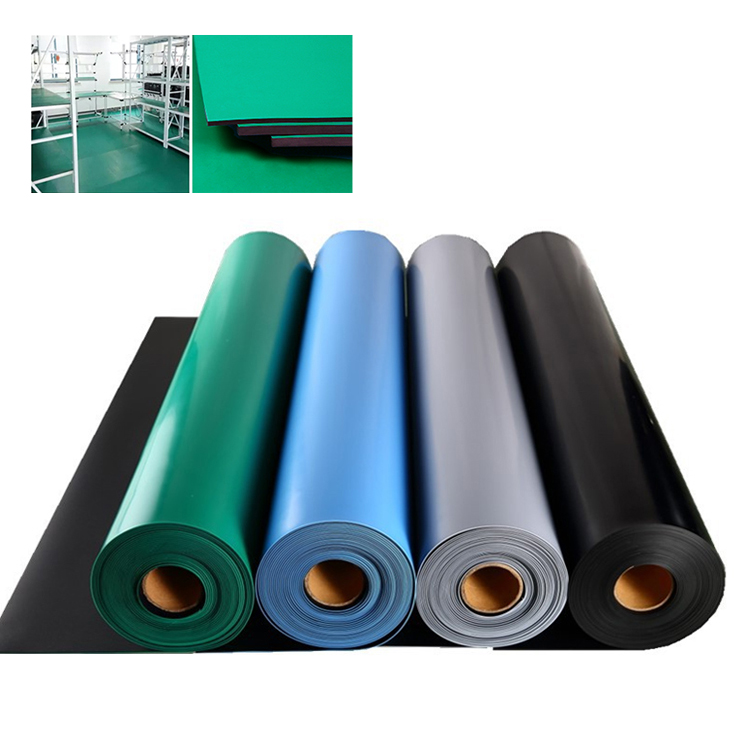

Custom 1.2m Workbench Antistatic Rubber Work Mat And Roll PVC ESD
Table Mat Anti Static Safe Floor Mats
ESD Anti Static Mat Description :
Durable and high quality ESD mat have superior heat-, chemical-,
and wear-resistance.Feature two layers rubber; the top layer is
dissipative and the bottom layer is conductive.
ESD Mats are used for workstation surface and provide a cushiony
ESD surface that is resistance to heat and most chemicals. It is
ideal for use in setting up workstation in electronic assembly,
repair, field's service and electronic sensitive storage areas and
advanced laboratories for microelectronic industries, protect
electronic devices during production and storage and shipping.
ESD two layer mats offers superior quality and a life time limited
warranty. With a total thickness of 2 mm or 0.79 inch. Comes in
Blue, Green and Grey in mat finish.
ESD Anti Static Mat Features :
The Anti-static Mat is acid resistant , alkali-resistant , anti
chemical flux , wear resistant ,
easy clean. It can be applied to matting desktop , line working
mesa and so on , achieves the effect of static electricity
protective, avoid devices damaged
ESD Anti Static Mat Application:
Table top use to provide static safe work surface for static
sensitive products in Aviation, Clean-rooms, computer
Operators, Computer Technicians, Fiber Optic, Hospitals, and
Pharmaceutical Industries in high temperature setting. Aerospace
Assembly, Electronic Manufacturing, Electronic Repair, Medical
Assembly and Soldering
ESD Anti Static Mat Spefication:
| Specifications: | Typical Values |
| Top Layer | 0.5mm thickness |
| Bottom Layer color | Black |
| Top Layer Color | Blue, Green, Grey |
| Surface finish | Matte, Shinny |
| Bottom Layer | 1.5mm thickness |
| Total Thickness | 2mm |
| Resistance of Surface Layer | 107-109ohm |
| Resistance of Bottom Layer | 103-105ohm |
| Time for Static Dissipation | <0.5S |
We have three kinds of esd mat available:
Class A, thickness:2mm, Color: Blue, Green, Grey. ESD Validity:
about 12 months
Class B1, thickness:2mm, Color: Green . ESD Validity: about 6 to 8
months
Class B2, thickness: 1.8mm, Color: Green, ESD Validity: about 6 to
8 months.
(1) Specification are subject to change at any time for a variety
of reasons. Quality is 100% same as the samples.
FAQ:
1) is it ESD or None ESD ?
Yes, our material are permanent Antistatic .
2) What 's good resistance for ESD material ?
range at 10e4-9ohm
3) is it meeting ANSI/ESD 20.20 standard or IEC 61340-5-1
Yes, our products are all meeting china local and international
standard .
4) is any warranty for ESD Magazine Racks , Dry Cabinet or Ionizers
?
Warranty one year , According to ISO 9001 : 2008 quality system .
5) what's size for ESD Box, ESD Trays, ESD Bags, ESD Gloves, or
others ?
Most of them can be customized as per customers request
