1.2mx10m 2mm ESD Antistatic Green Rubber Workbench Table Mat
ESD Anti Static Mat Description :
ESD rubber mat or ground mat should be laid out in the workshops
and advanced laboratories for microelectronic industries such as
electronic semi-conduct devices, electronic computers, electronic
communication equipment and integrated circuits etc. To eliminate
damages caused by static electricity. When anti-static rubber mat
(ground mat) are laid out and grounded, the working surface will
discharge the static electricity of human bodies so that a
near-equipotential can be maintained for ESEDS tweezers, tools,
utensils and instruments, through which human bodies contact the
working table and static sensitive devices(SSD) are free from
broadband interference produced by static discharging such as
triboelectrification etc. In this way, electrostatic protection is
realized.
ESD Anti Static Mat Features :
1. Material : Rubber

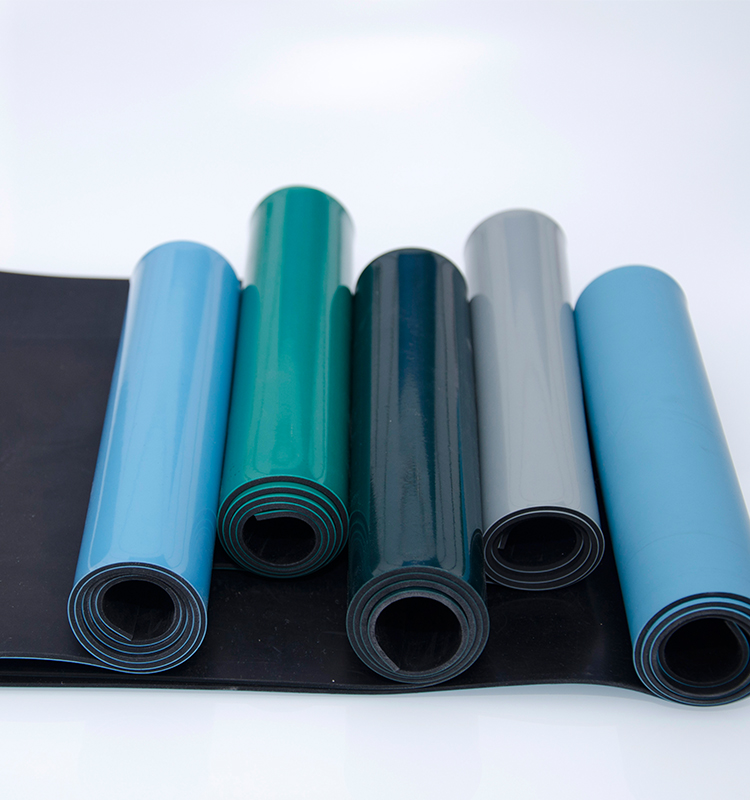

2. Color: Green, blue, gray.Blakc,
3. shiny and dull
4. Size:(0.6,0.9,1.0,1.2M)*Length(0-50M)*Thickness(2,3)MM
5. Volume resistance ≤107Ω cm, fast static discharge and the
service life not less than 2 years.
6. Shock resistance and fatigue resistance
ESD Anti Static Mat Application:
Table top use to provide static safe work surface for static
sensitive products in Aviation, Clean-rooms, computer
Operators, Computer Technicians, Fiber Optic, Hospitals, and
Pharmaceutical Industries in high temperature setting. Aerospace
Assembly, Electronic Manufacturing, Electronic Repair, Medical
Assembly and Soldering
ESD Anti Static Mat Spefication:
Construction Material: | Rubber |
Color: | Green, blue, gray, black |
Normal Size: | 0.6,0.9,1.0,1.2M*10m*2mm or Custom |
Two layers: | Static Dissipation layer + Conductive layer |
Surface: | Shiny or dull |
Gross Weight: | around 35kg/roll |
Remarks: | Above sizes are standard, customized size available. |
Performance index of Dissipative Table/Floor Mat |
Dissipative Table Mat/Floor Mat | Specification | Color |
Static Dissipation layer | Surface resistance | 107-109 | 1.2mx*10mx*2mm(T)
1.0mx*10mx*2mm(T) | Green, blue,
gray, black |
Friction static potential V | <100 |
Conductive layer (black bottom) | Surface resistance | ≤106 |
Friction static potential V | <60 |
Static voltage attenuation period | 5000 – 500V | <1.9s |
Flame retardation | GB4609-84, FV-0 (less than 10S) |
Volume resistance | 107-1010Ωcm |
Physical performance index of Dissipative Table/Floor Mat |
No. | Description | Test reference | Results |
1 | Tensile strength | GB 1040 | 3.6Mpa |
2 | Fracture elongation | GB 1040 | 188% |
3 | Tear elongation | GB/T 529 | 20.6KN/m |
4 | Rebound elasticity (the specimen is laminated with 6 layers of
sheets) | GB/T 1681 | 14% |
5 | Impact embrittlement temperature (no cut) | GB 5470 | No damage |
at -25℃ |
6 | Permanent compression change rate, 70℃*22h, compression 25% | GB 10654 | 17.90% |
7 | Hot air ageing | Tensile strength change rate | GB/T 7141 | 8.00% |
Fracture elongation change rate | -3.80% |
Weight loss on heating | 1.08% |
Remarks | Test according to national standards: GB 1040, GB/T 529, GB/T 1671,
GB 5470, GB 10654 and GB/T 7141. |
